Aixun Microscope + LCD HD 7 Pollici


Products

Aixun Microscope + LCD HD 7 Pollici

AiXun digital industrial video microscope is a comprehensive instrument that can be applied to various fields, including soldering PCB, BGA, CPU and other electronic components.
Supports data measurement by connecting to PC with USB cables, including calibration, data deletion and saving, point, line, polygon and angle measurement.

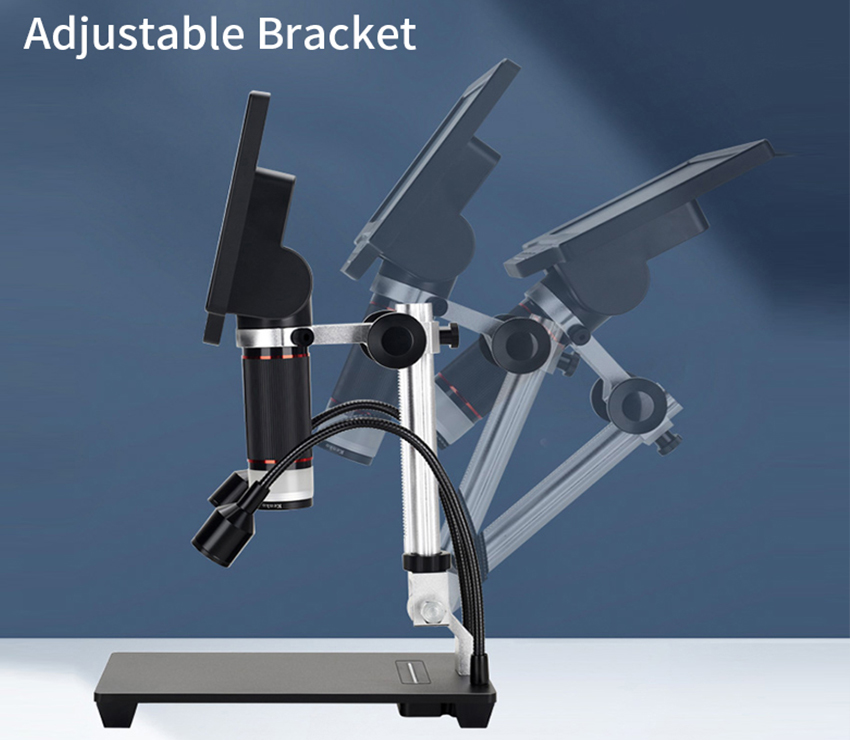

It also supports adjusting the brightness by clicking or sliding the touch area of the fill light. The height of the camera can be adjusted due to different work needs.

This microscope can be connected to an external monitor thanks to the supplied cable, and then view the recovery of the aixun camera on a larger monitor !

Specifications:

Name AX-Videomicroscope-7.0
Brand Ai Xun
Screen resolution 1024x600
Video resolution 1080P30 720P60
Image resolution 2688x1512, 5440*3056

HDMI resolution 720P60
USB resolution 1080P20/720P30/WVGAP60
Wi-Fi 720x360@30fps output, support Android/iOS (optional)
Magnification 5X~528X (optical 5X~33X, digital 1X~16X) GW1450G

Content:

1 x AX-7.0 video microscope
1 USB data transmission cable
1 x power cord
1 manual

1 x Dust Cover
1 power adapter
1 infrared remote control
1 x Screen Cleaning Cloth
